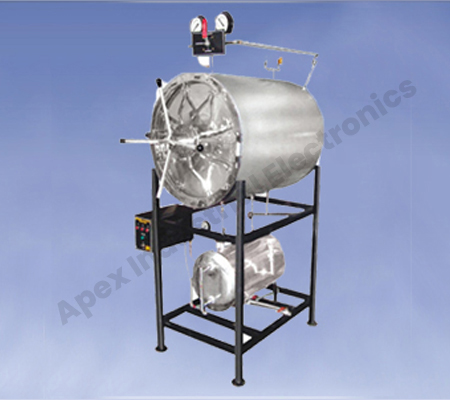

Horizontal Autoclave (Radial Locking)
This is a double walled unit mounted horizontal on a sturdy, heavy mild steel tubular stand duly painted. Pressure is adjustable from 10 to 20 psi. Fitted with pressure gauge, safety valve and steam release valve. Unit is fitted with S.S. Boiler, separate valves for injecting the steam into the main chamber and releasing the steam in atmosphere after use are provided. Hydraulically tested up to 40psi, Automatic vacuum breaker is provided to break the vacuum in case of formation of vacuum due to steam condensation. Inner chamber made of S.S. 304 GRADE and outer of Mild Steel covering with Stainless Steel. Lid is made of S.S. plate with radial locking system, without steam jacket, Available with or without boiler & outer of S.S. As per size:
| S.NO. | DIA x DEPTH | LOAD (in kW) |
|---|---|---|
| 1. | 300x500 mm | 3 |
| 2. | 350x550 mm | 4 |
| 3. | 400x600 mm | 6 |
| 4. | 450x600 mm | 6 |
| 5. | 550x750 mm | 8 |
| 6. | 400x1100 mm | 9 |
We Can Design Any Size According To Our Customer Requirements.
