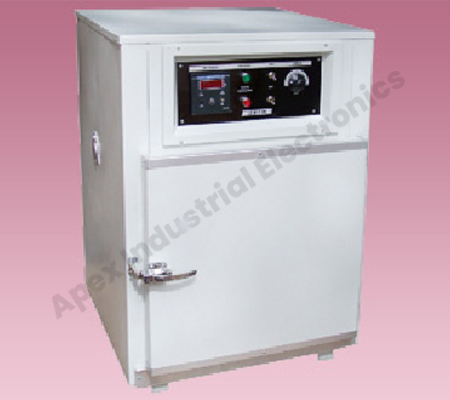

Dry Heat Sterilizer

Dry Heat Sterilizer   are designed to suit various applications in growing field of Medical ,Research Laboratories of Hospitals for sterilization. Suitable to work on 220/230V AC supply.

CONSTRUCTION:- Double walled construction with inside Stainless Steel Chamber having 60-70mm glass wool insulation & outer wall is made from MS with powder coated. Door is fitted with heavy chrome plated hinges & spring & roller type latch catch. Provided with adjustable steel wire mesh tray for better air circulation.

TEMPERATURE RANGE: Ambient to 250ºC ± 1º C. Temperature controlled by MICROPROCESSOR based Digital Temperature Controller or By Hydraulic Thermostat.

HEATING: Heating elements are made from high grade (Kanthal ISI) Resistance wire. Heaters are fitted/wound along all sides & bottom. Complete with 2 pilot lamp cord & plug pin etc.

AVAILABLE SIZE
SIZE INSIDE CHAMBER
W X D X H Ltrs.(App.) No. Of Trays
300 x 300 x 300 mm (12” X 12”X 12”) 28 2
355 x 355 x 355 mm (14” X 14”X 14”) 45 2
450 x 450 x 450 mm (18” X 18”X 18”) 95 2
450 x 450 x 600 mm (18” X 18”X 24”) 128 2
600 x 600 x 600 mm (24” X 24”X 24”) 227 2
600 x 600 x 900 mm (24” X 24”X 36”) 340 2

Optional

  • Automatic Holding Timer & Alarm
  • Circulation Fan

We Can Design Any Size According To Our Customer Requirements.
