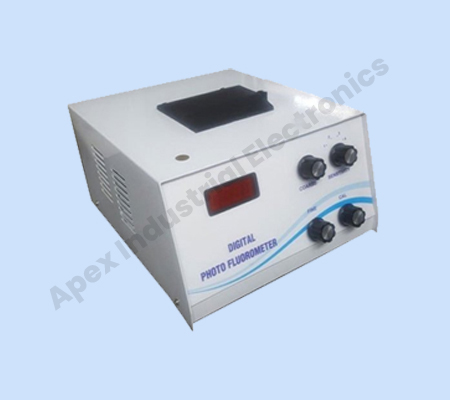

Digital Photo Fluorometer

Full Scale Deflection Obtained With 1ppm Quinine Sulphate In 0.1 N Sulphuric Acid (Primary Wavelength 360nm) Primary Filters: Corning 5840 And Corning 5113 Mounted Holders. Secondary Filters: Corning 4308, Corning 3486, And Corning 3385 Mounted On Holders. It Is Used For Analysis Of Fluorohors Such As Vitamins, Quinine, Steroids, Fluorescein, Metal Complexes Etc.

Features:-

• 3 Digits Bright Red Seven Segment Led Display.
• High Stable & Accurate.
• Adjustable In 4 Ranges.
• Minimum Sample 4ml
• Determines The Concentration Of Flurophors Quinine.
• Highly Sensitive Wide Range Photodiode/Cell.

Technical Specification:-

Display:- 3 Digit Bright Red Seven Segment Led Display

Excitation Source:- 12v, 50w Tungsten Halogen Lamp

Sensitivity Ranges:- Adjustable In 4 Ranges

Primary Filters:-Corning 5840 And Corning 5113 Mounted On Holders

Secondary Filters:- Corning 4308, Corning 3486, Corning 3385 Mounted On Holders

Detector:- Highly Sensitive Wide Range Photodiode/Dell

Samples Test Tube:-15mm (D) X 80 Mm (H)

Minimum Sample:- 4ml

Power:- 230v + 10%, 50 Hz. Ac

Accessories:-

• Primary And Secondary Filters :- A Set Of 5
• Test Tube :- A Set Of 5
• Instructional Manual
• Dust Cover
