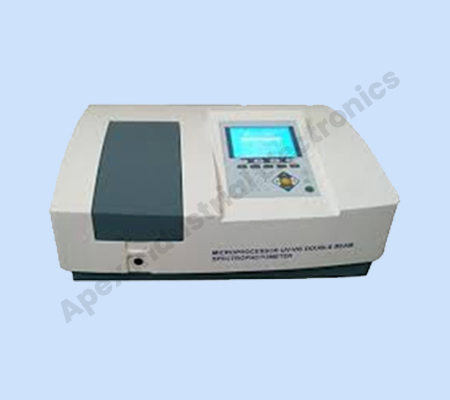

UV VIS Spectrophotometer Variable Bandwidth based instrument designed for quick and accurate spectrophotometric analysis of any concentration. It operates at a wavelength range of 190 nm to 1100 nm. The use of diffraction grating in the monochromatic produces a linear spectrum. The grating having very high resolution of 1200 lines/mm ensures a narrow bandwidth. The instrument output is available in terms of % transmission (%t), absorbance (abs. ), & concentration (conc. ). The instrument is suitable for clinical lab applications, pharmaceutical and biochemical, as well as routing applications such as quantitative analysis, kinetics, wavelength scan, multi-wavelength and DNA/protein analysis. The instrument has sample storage memory and printer output port for printing of data with any dot matrix printer. The pc can be connected using the USB interface. Provision for 8 position auto cell changer with 10 mm path-length curette is provided. This product is also known as Spectroscopic Equipment.
Optical System | Double Beam (1200 Lines/mm Grating) |
---|---|
Wavelength Range | 190-1100 nm |
Mode | Basic/ Quantitative/Wavelength Scan/DNA Protein Test/Kinetics/Multi Wavelength |
Scanning Speed | Fast/Medium/Low |
Spectral Bandwidth | 0.5/1.0/2.0/4.0/5.0 nm |
Wavelength Accuracy | ≤ ± 0.3 nm |
Wavelength Repeatability | 0.2 nm |
Photometric Accuracy | ± 0.3% T |
Photometric Repeatability | ± 0.2%T |
Light Source | Deuterium & Tungsten Halogen Lamp |
Display | Graphic LCD (320X240 Dots) |
Detector | Silicon Photodiode |
Cell Holder | 2 Cell Holder |
Weight | 26 G (Approx.) |
